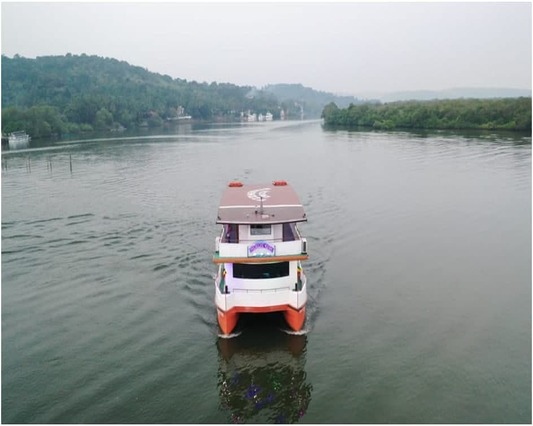

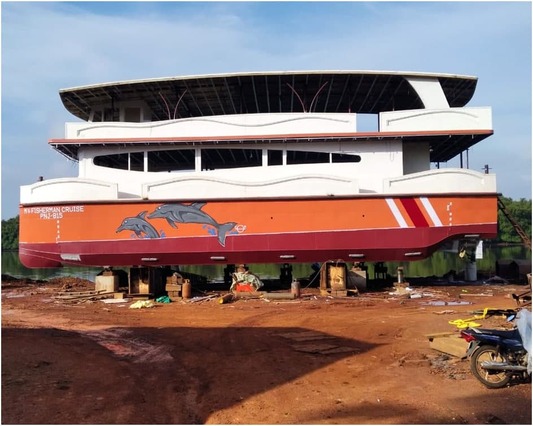

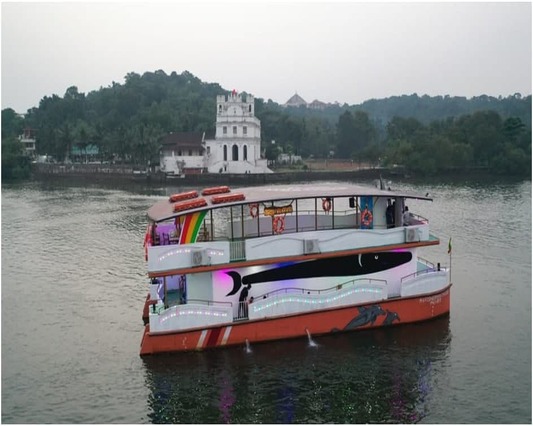

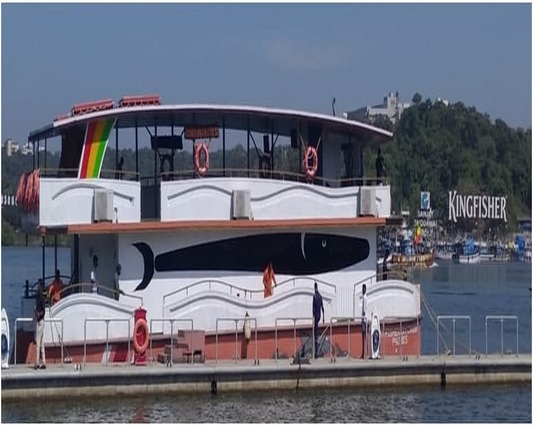

CRUISE -Lower deck –80 Passengers (Air Conditioned) & Upper Deck Mini Hall and Restaurant (Non AC – Side open)

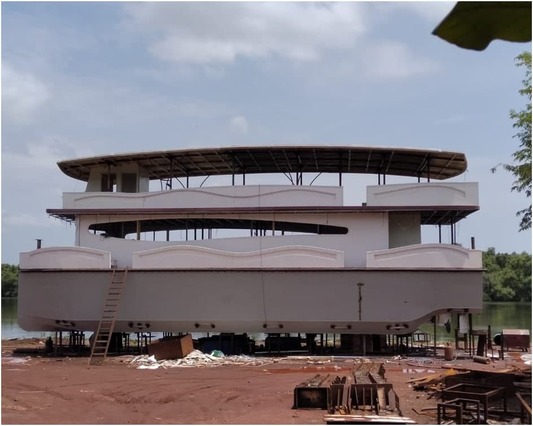

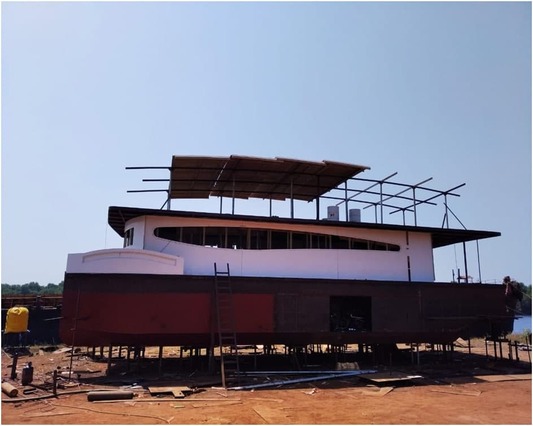

Gallery
Principal Particulars Hull
| #S.No | Name | Mesurements |
|---|---|---|
| 1 | Length Overall | 18.20 M |
| 2 | Breadth | 6.50M |
| 3 | Depth | 2.85M |
| 4 | Draft | 1.55M |
| 5 | Engine | Ashok Leyland Marine Diesel In-built Engine of developing 110HP @1800rpm |
| 6 | GearBox | 2:1 Mechanical GearBox |
| 7 | Speed | 6-8 knots in calm weatherconditions |
| 8 | Hull | STEEL & Super Structure -FRP |
- ForePeak
- Air-conditioned Lower Deck
- Upper deck Mini Hall and Restaurant
- Toilets in lower and upper deck
- Mini- Kitchen in theupper cabin
- Aft deck with Party Lights and MusicSystem
- Basic construction details of vessel (As Advised by NavalArch)
Main Hull
| #S.No | Name | Mesurements |
|---|---|---|
| 1 | Hull Angle & Stiffeners | 6 mm thickness |
| 2 | Hull Plate Keel | 18 mm thickness |
| 3 | Hull Plate Foundation | 10 mm thickness |
| 4 | Hull Plate (Other Areas) | 8 mmthickness |
| 5 | Bulk head | 6 mmthickness |
| 6 | Anchor,RudderPlats | 10 mm thickness |
| 7 | All other plates | 4 mm thickness |

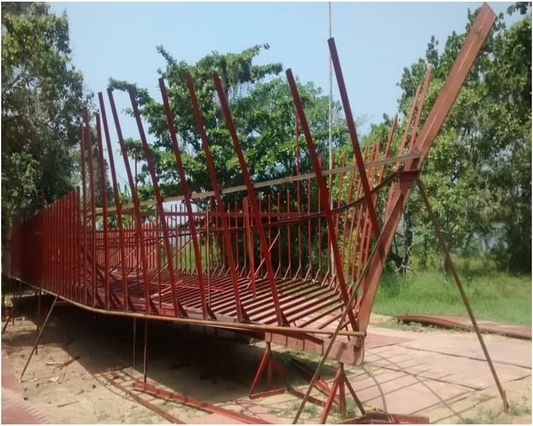

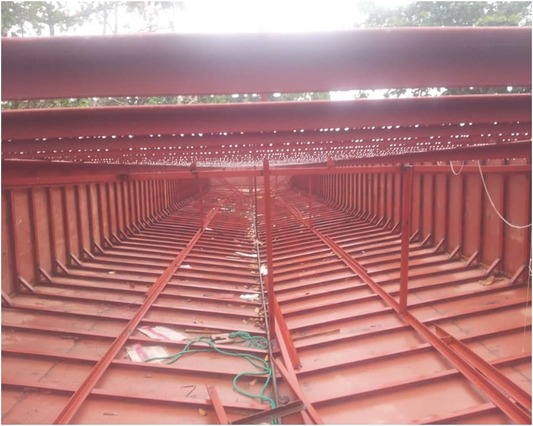

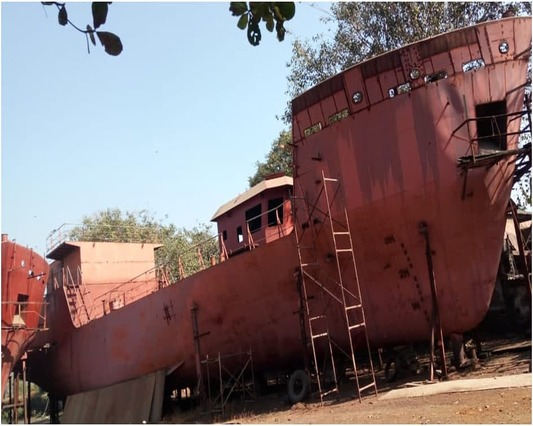

Hull Construction
The Steel hull construction shall be constructed for a low speed planing hull design for Indian Inland Vessel Water operations. Hull is made out of Mild Steel smoothen layup method used to do hull & deckconstruction.
- Fully enclosed main cabin done with vacuum infusion Cabin door with marine grade aluminum.
- Sliding window and wind shieldprovided Electricals done with marine grade cables and LED Lights, Fans provided as per standard
- Marine sanitation device and system Rest room with exhaust system
- Generator – 140V/12V
- D shape fender will beprovided
- Fuel tank made out of marine gradealuminum
- Control panel & Transducer etc. will be provided as per spec. Electrical equipment as per requirements
- Grab/Rails all are of SS316
- Inflatable Rescue Boats
- Jet-skis (Water-scooter)
Deck will be same as hull composites, but the PVC foam thickness will be 30 mm & fiber glass will are 800 biaxial on both side & non-skid paint will be done on the deck.
All stringers will be done by laminated marine grade wood & laminated by 400 biaxial fiber glass with epoxy resin. Marine grade plywood supplied from ISO standard company will be used for Bulkhead wherever needed.
Roof will be in fibre glass composites with PVC 6 mm foam for light weight & the roof support will be done in fibre glass with Stainless steel 316L for bolting. The roof will be removable & assembled with SS bolts and nuts. Rails around the hull will be made out of SS 316L.However for major modifications (if any) on the standard product, we will be charging you extra.
2 No Ashok Leyland with a mechanical gearbox of 2:1 ratio will be provided. The engine will be fixed on longitudinal girders; The engine room will have acoustic insulation ensuring a smooth cruise with less noise.
Mechanical steering, accelerator and gear control system will be provided at the ford of the boat.
A stern gear assembly comprising of brass stern tube, Stainless steel Shaft, MS Intermediate shaft inner and outer stuffing gland cutlass rubber bushes.
2 No: Aluminum 300 L fuel tank will be provided. It also has fuel system connected with Genset
A semi rotary pump will be provided at the deck, ford and aft to bilge out the water from the compartments.
2 Nos. fresh water tanks having a capacity of 500 L (Total 1000Ltrs)
The Flooring will be of Cement Board (16 MM) with Vinyl Tile Flooring on top.
Electrical Fittings
| Item | Installation | Qty |
|---|---|---|
| Navigation lights | P & S Lights | 1 each |
| Do | Search Light | 1 |
| Restaurant light | Ceiling LED | - |
| Toilet Lights | Ceiling | 1 No toilet |
| Exhaust fan | Toilet & Kitchen | 1 No Each |
| Power Plug 5 A | Restaurant Hall | 1 in Each floor |
| Do | ER | 1 |
| Do | Kitchen | 2 |
| Engine room lights | On bulk head | 2 Nos |
Roof Canopy will be FRP with stiffeners.
The frame structure will be of Square tubes & plywood & Glass paneled
5 Toilets in the Lowerdeck and Two in the Upper Deck will be Provided
- European closet - 1 Nos
- Health Foset - 1 Nos
- Napkin Holder - 1 Nos
All partition will be out of 6mm thickness plywood/Cement board pasted with OST.
1.5-ton AC –06 Nos an 2 Ton- 1 No AC for the Mini Hall will be provided in lower deck and Upper Deck.
Genset is included according to the required power. Cummins -140 KVA X 2 No’s.
FRP Structure – 1 coat epoxy primer surface & 2 coats of epoxy finish. Hull – 2 coat epoxy primer & 2 coats of epoxy finish.
All the door fittings including the main lock will be SS material.
